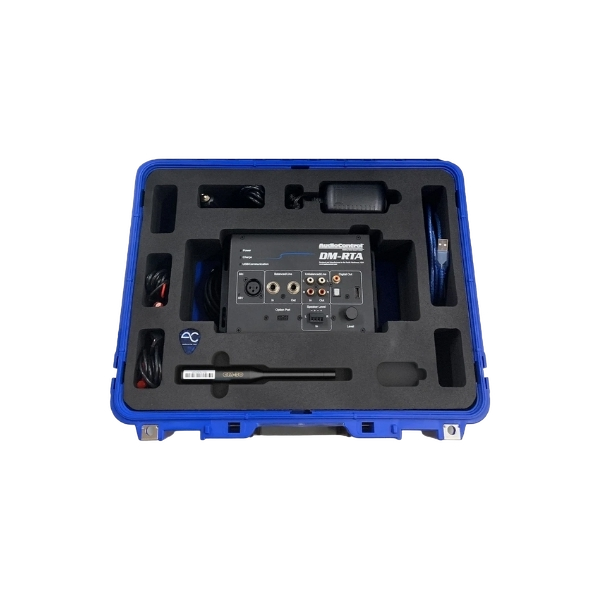

AudioControl – DM-RTA Pro Kit – Real Time Analyzer And Multi-Test Tool

Specifications

• 1 X BALANCED INPUT IMPEDANCE: 3.24kΩ

• 1 X UNBALANCED INPUT IMPEDANCE: 3.24kΩ

• 1 X MICROPHONE INPUT IMPEDANCE: 10kΩ

• 1 X SPEAKER LEVEL INPUT IMPEDANCE: 16.24kΩ

• MAX LOW-LEVEL INPUT VOLTAGE: 8 Vrms

• MAX HIGH-LEVEL INPUT VOLTAGE: 40 Vrms

• 1 X BALANCED OUTPUT IMPEDANCE: 51Ω

• 1 X UNBALANCED OUTPUT IMPEDANCE: 51Ω

• 1 X COAX DIGITAL OUTPUT IMPEDANCE: 75Ω

• MAX OUTPUT VOLTAGE FROM SIGNAL GENERATOR: 5 Vrms / 7 V Peak

• 1 X TOSLINK

• 1 X USB
