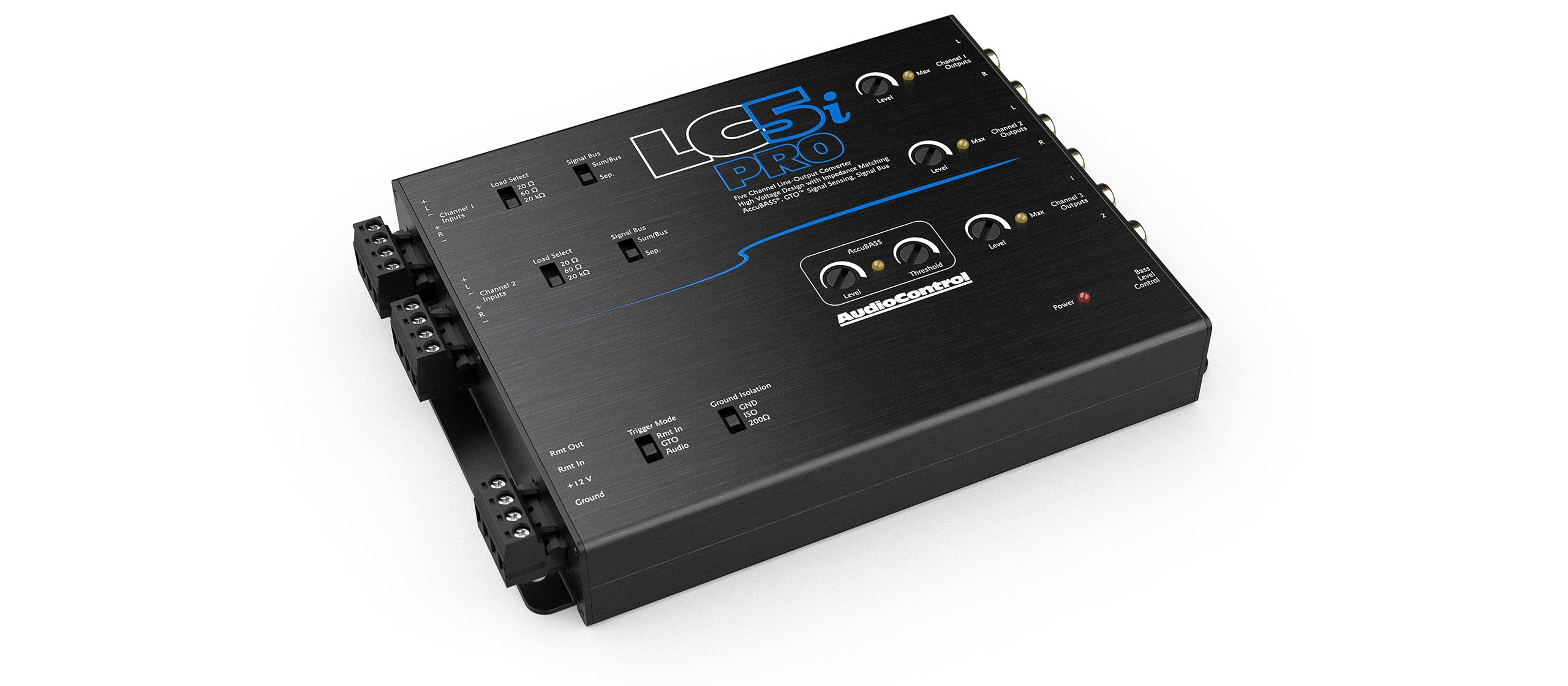

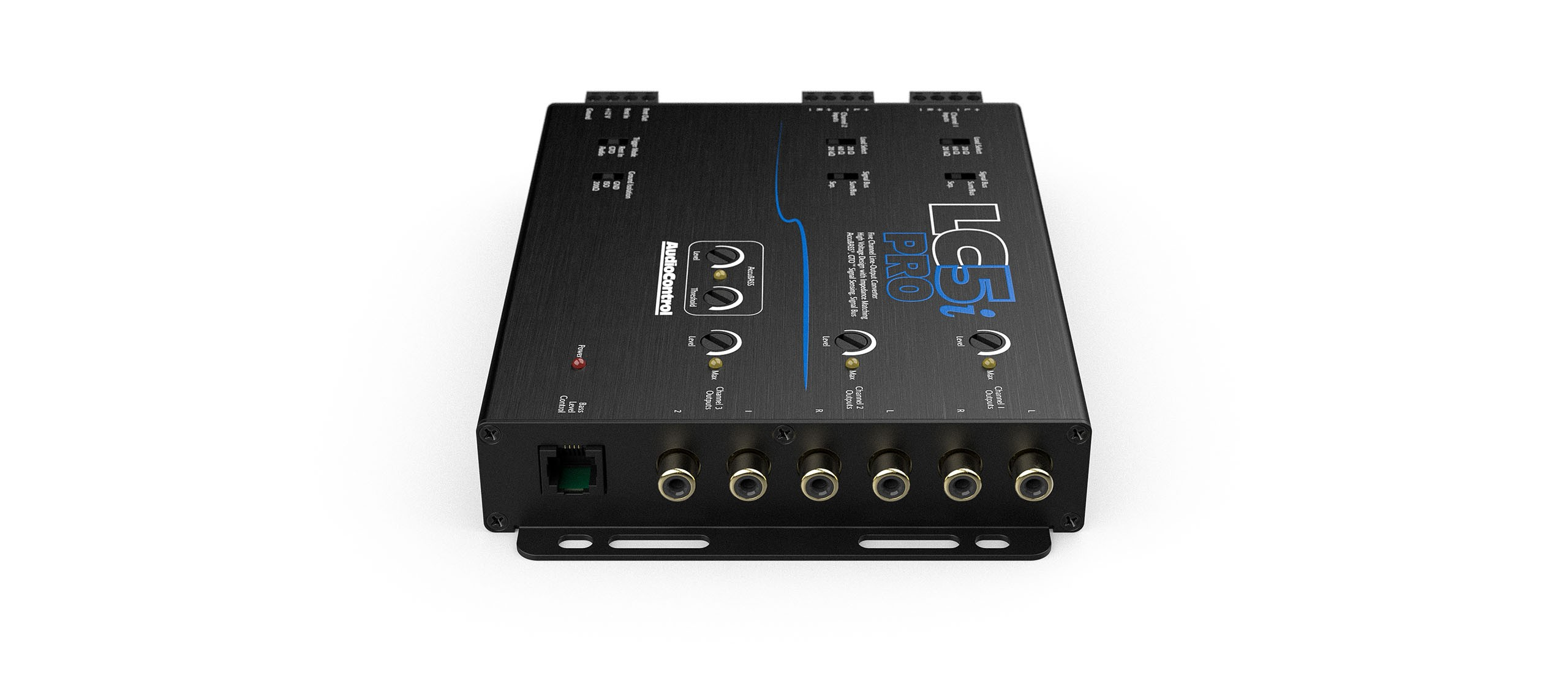

LC5i PRO – 4ch in – 6ch out Line Out Converter – AudioControl

R5,374.53

4 in stock

SKU: LC5IPRO Category:

Description

AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound. Installer-friendly trigger modes offer flexibility and an expedited installation time since the units can be turned on via GTO™ Signal Sense (DC offset), audio signal sensing, or standard remote 12 volt input. All PRO series products feature AudioContol’s patented AccuBASS® for restoring low frequency output diminished by factory processing, and an ACR-1 level control is included to dial in the perfect level for your subwoofer right from the comfort of the driver’s seat. The Pro series ensures that you will start with the clean, powerful signal you need to take your system from sounding good to sounding great.

Additional information

Brand

Product Type

Channels

Power Rating

Overview

  • Four channels of active speaker-level inputs (up to 40V input handling)
  • Fixed and variable outputs with discrete-level controls
  • AccuBASS® processing for correction of bass roll-off
  • Load Selection Switch
  • GTOTM Signal Sensing
  • Ground Isolation Switch

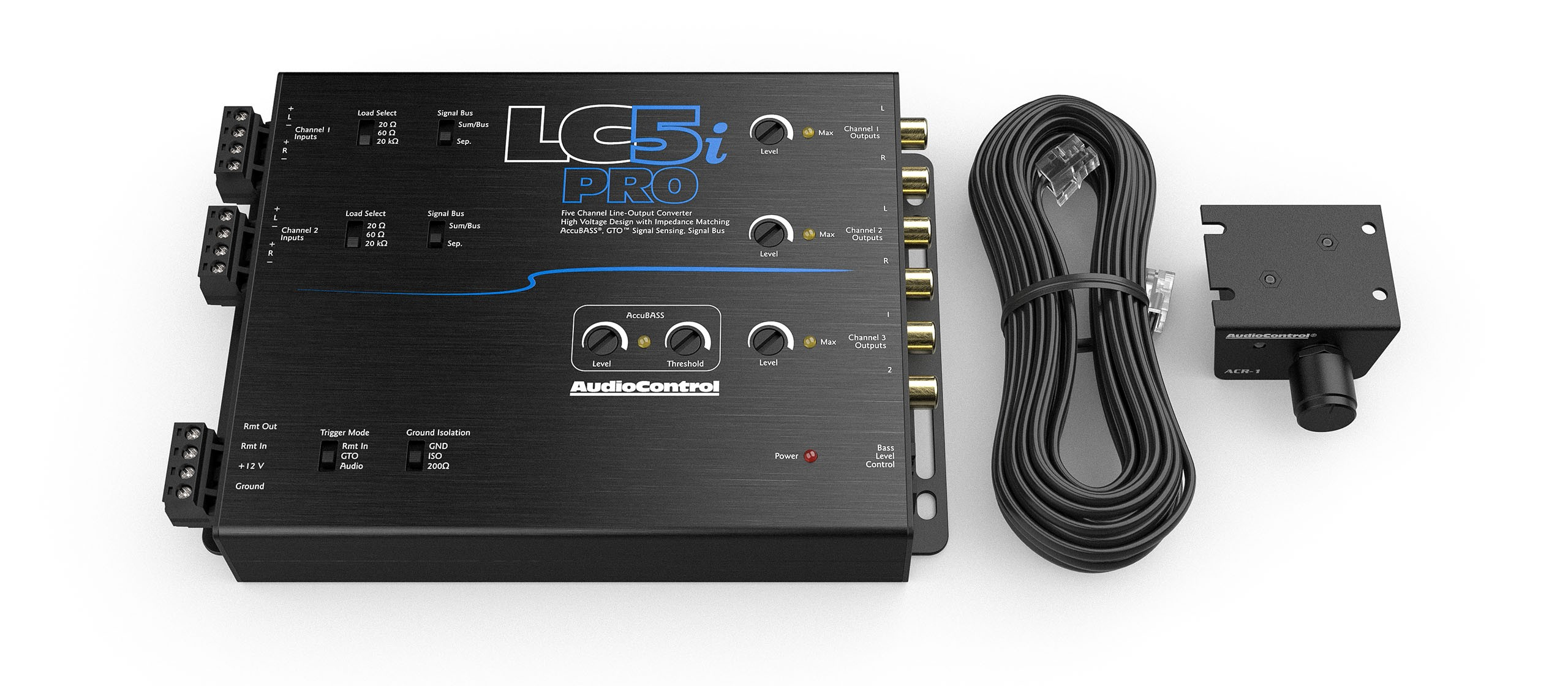

  • ACR-1 dash remote included
  • Compact design



ACCUBASS® STATUS LED

SIGNAL BUS

GROUND ISOLATION

MAXIMIZED LED

LOAD SELECT SWITCH

TRIGGER MODE SWITCH

Specifications

  • INPUTS

    • Speaker Level Input: 1 (4 channels)
    • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
    • Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

    OUTPUTS

    • Preamp Outputs: 5 (4 channels main, 1 channels bass)
    • Maximum Output Level: 9.5Vrms/13V peak
    • Output Gain: +/- 15 dB
    • Output Impedance: 150Ω

    PERFORMANCE

    • Total Harmonic Distortion: 0.01%
    • Signal to Noise: >124 dB
    • Frequency Response: 20 Hz – 20 kHz

    CONTROL

    • Remote In / GTO™ Signal Sense / Audio Sense
    • 12VDC Remote Out (always active when unit is on)

    GENERAL

    • Current Draw: 330 mA
    • Recommended Fuse Rating: 2 A

Video

Downloads

LC5i-PRO-User-Manual
