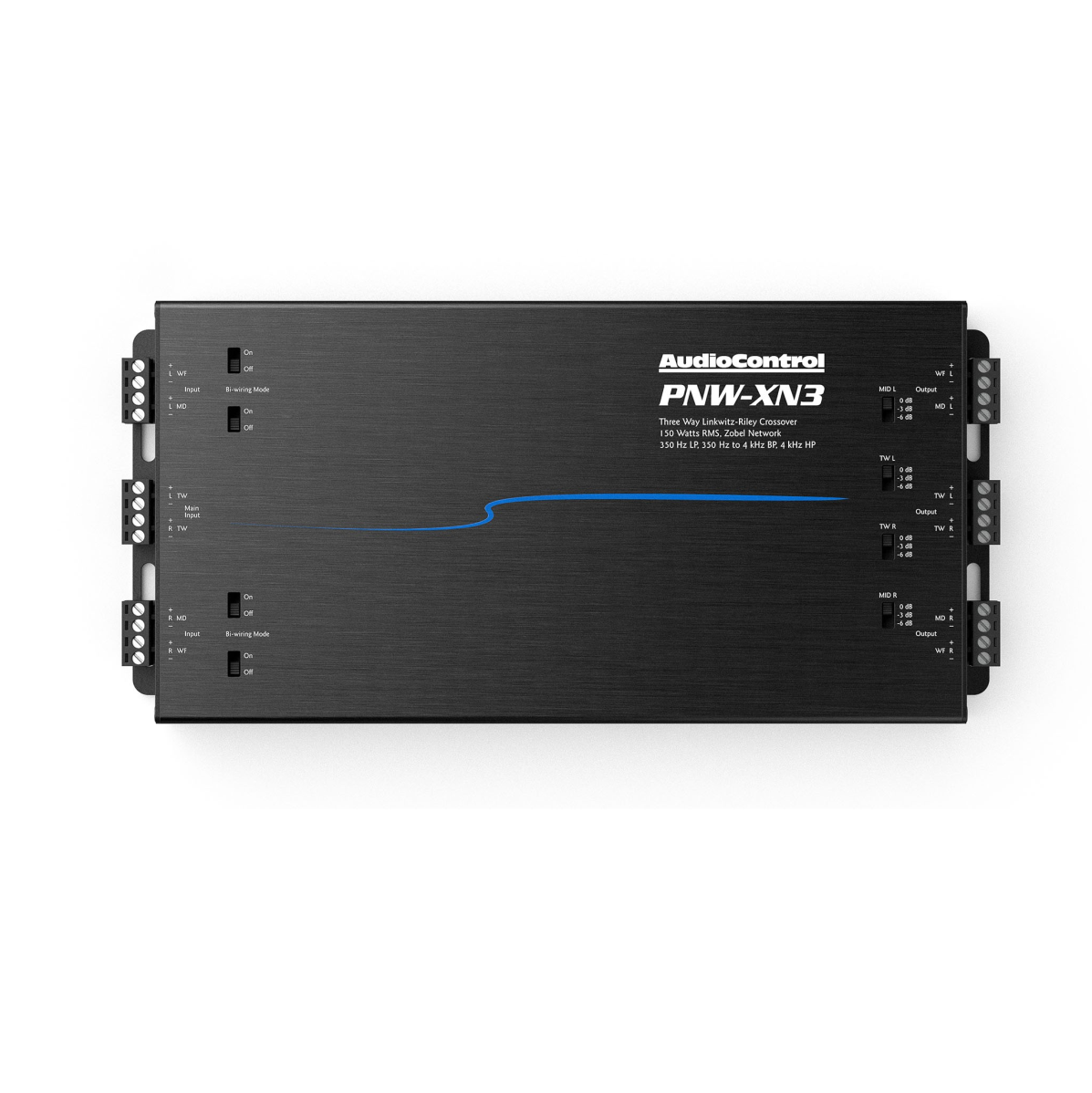

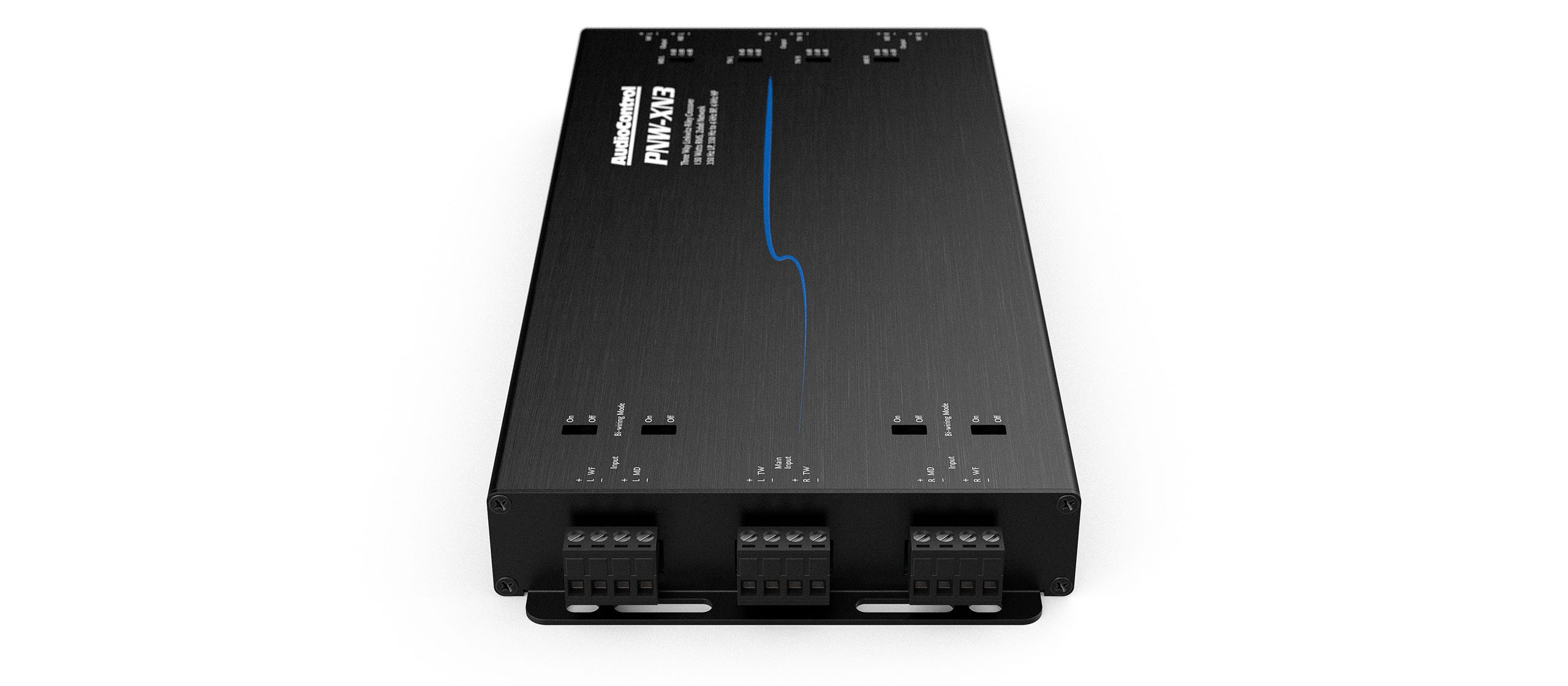

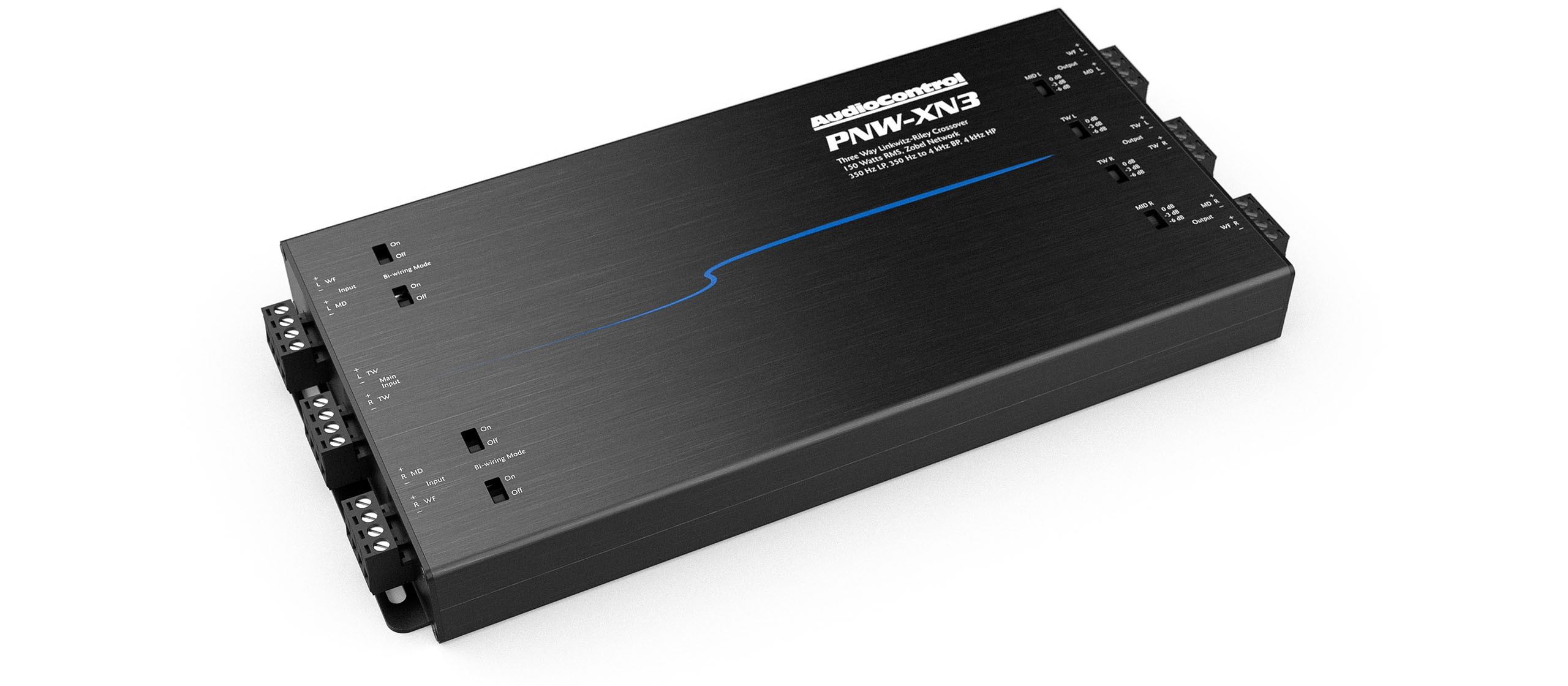

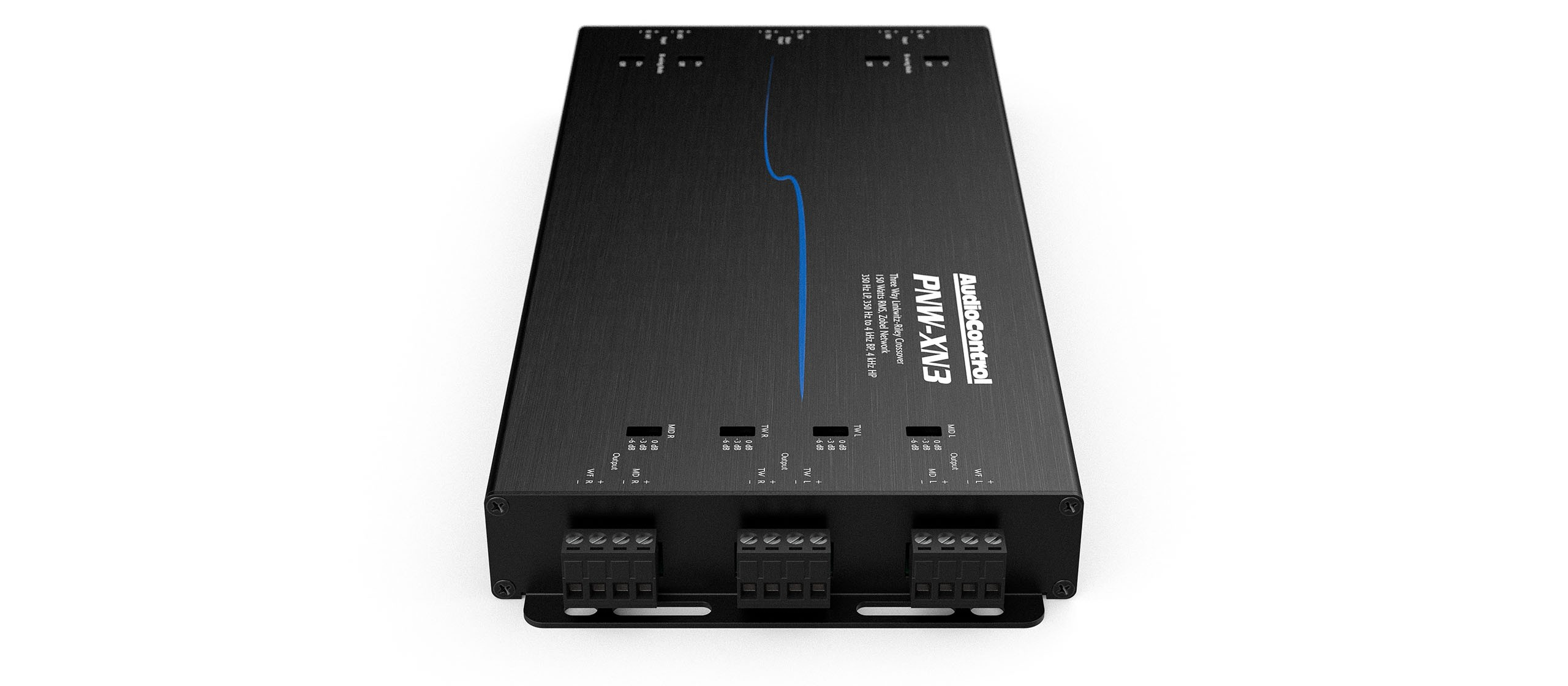

AudioControl – PNW-XN3 – PNW SERIES 3-WAY CROSSOVER NETWORK
R3,377.21
5 in stock
Description
Easily create a 3-way speaker system by adding PNW-275 to either PNW-65CS2 or PNW-69CS2. Configurable from 2, 4 or 6 channels of input.
COMPATIBLE WITH
- PNW-65CS2
- PNW-69CS2

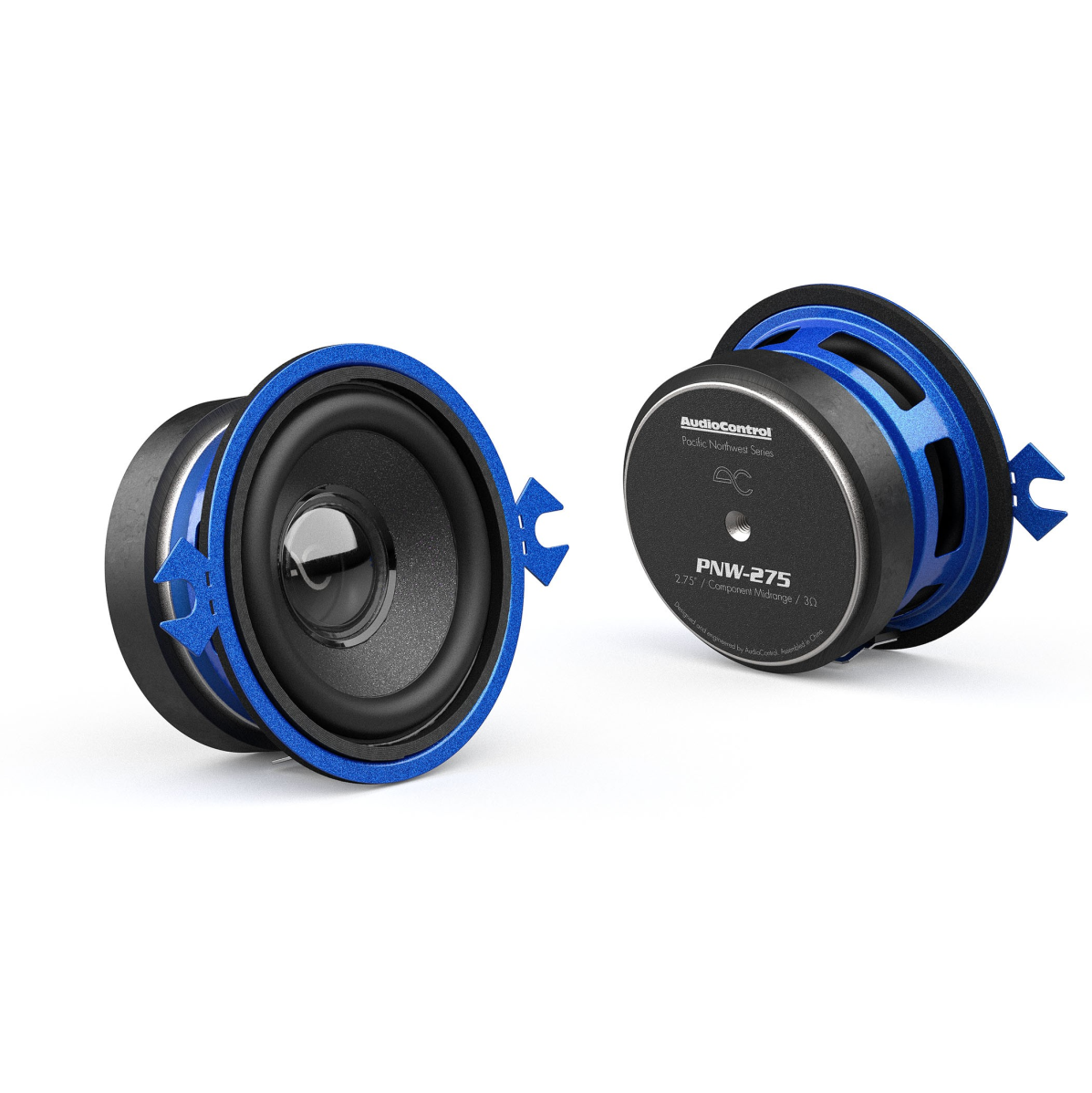

- PNW-275
Additional information
| Brand | |
|---|---|
| Product Type | |
| Power Rating |
Overview
- 2nd Order Linkwitz-Riley Crossover Slope with Zobel Networks
- 350 Hz LP (PNW-65/PNW-69), 350 Hz to 4 kHz BP (PNW-275), 4 kHz HP (PNW-1)
- 150 Watts RMS
Specifications
- Crossover Type 2nd order Linkwitz-Riley
- Filter Type HP / BP / LP
- XO Frequency 350Hz LP / 350-4k BP / 4K HP
- Slope (Octave) -12 dB
- Power Handling (RMS/Max) 150 Watts / 200 Watts
- Attenuation (Tw / Md) 0 / -3 / -6 dB
- Recommended Speaker Set 1 PNW-65CS2 + PNW-275
- Recommended Speaker Set 2 PNW-69CS2 + PNW-275
Compatibility
- PNW-65CS2
- PNW-69CS2
- PNW-275
Dimensions
- Overall Dimensions: 3.74 in/ 95 mm
- Overall Diameter(w/o Metal bracket): 2.83 in / 72 mm
- Cut Out Diameter: 2.63 in/ 67 mm
- Mounting Depth: 1.37 in/ 35 mm
- Mounting Height (w/o Grille): 0.05 in / 1.5 mm
- Mounting Height (w/ Grille): 0.48 in / 12.4 mm
- Motor Diameter (w/ Cover): 2.36 in / 60 mm
- Grille Overall Diameter: 3.42 in / 87 mm
